Description:

*1. Material: printed circuit board

*2. Item size: 92 * 50 * 9mm / 3.62 * 1.97 * 0.35in

*3. Item weight: 45g/1.59ounce

*4. Working frequency: 10KHz-1GHz

*5. ADC: 12bit

*6. Bandwidth: 10MHz (max) (real-time monitoring of 10MHz wide signal ranges)

*7. Application: AM/FM/NFM (Narrowband Frequency Modulation for Analog Intercom), CW Radio/Digital Intercom /DMR Digital System DRM Digital Broadcasting /SSTV Video AA Meteorological Cloud Map/Spectrum Monitoring, etc.

Features:

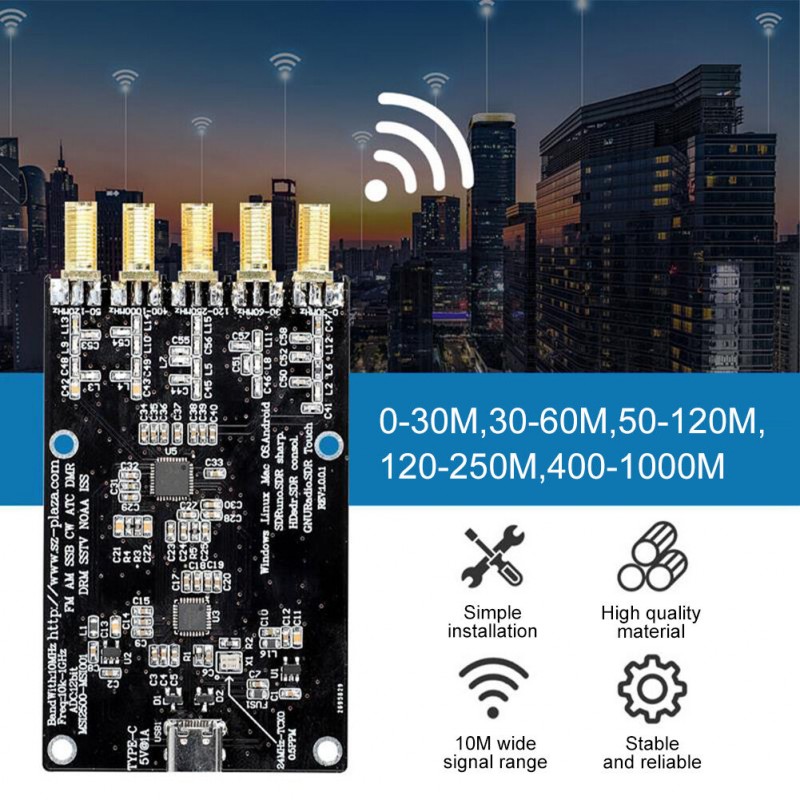

*1. Adopts msi2500 msi001 scheme, simplified RSP1 circuit, the interface is USB Type-C interface. Equipped with 5 antenna interfaces correspond to different frequency bands, 0-30MHz, 30-60MHz, 50-120MHz, 120-250MHz, 400-1000MHz.

*2. Effective frequency ranges from 10KHz to 1GHz, 12bit ADC resolution.

*3. Compatible with four platforms: for Wins, Linux, MacOS, and Android. Support SDRuno, HDSDR, SDR consol, GNUradio, SDR Touch, etc.

*4. It perfectly supports mainstream software such as for HDSDR, software defined radio consol, and GNURadio. (Devices for Android need to support OTG).

*5. Suitable for frequency modulation, AM amplitude modulation, SSB unilateral Band, broadband and narrowband analogs, DRM digital broadcasting, and etc..

Packing List:

1x Receiver, 1x Cable

OR

1x Receiver, 1x Cable, 1x Cover
